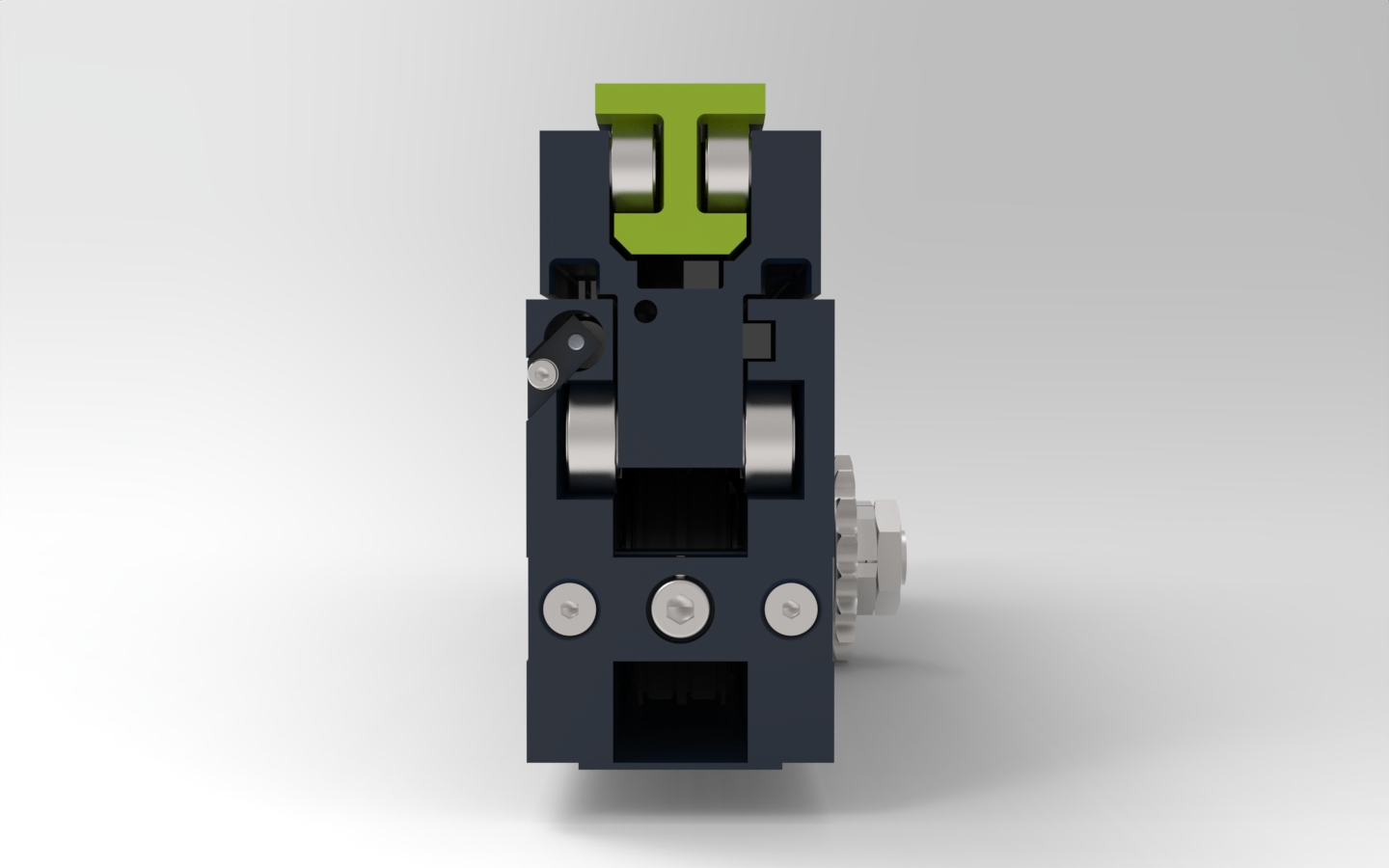

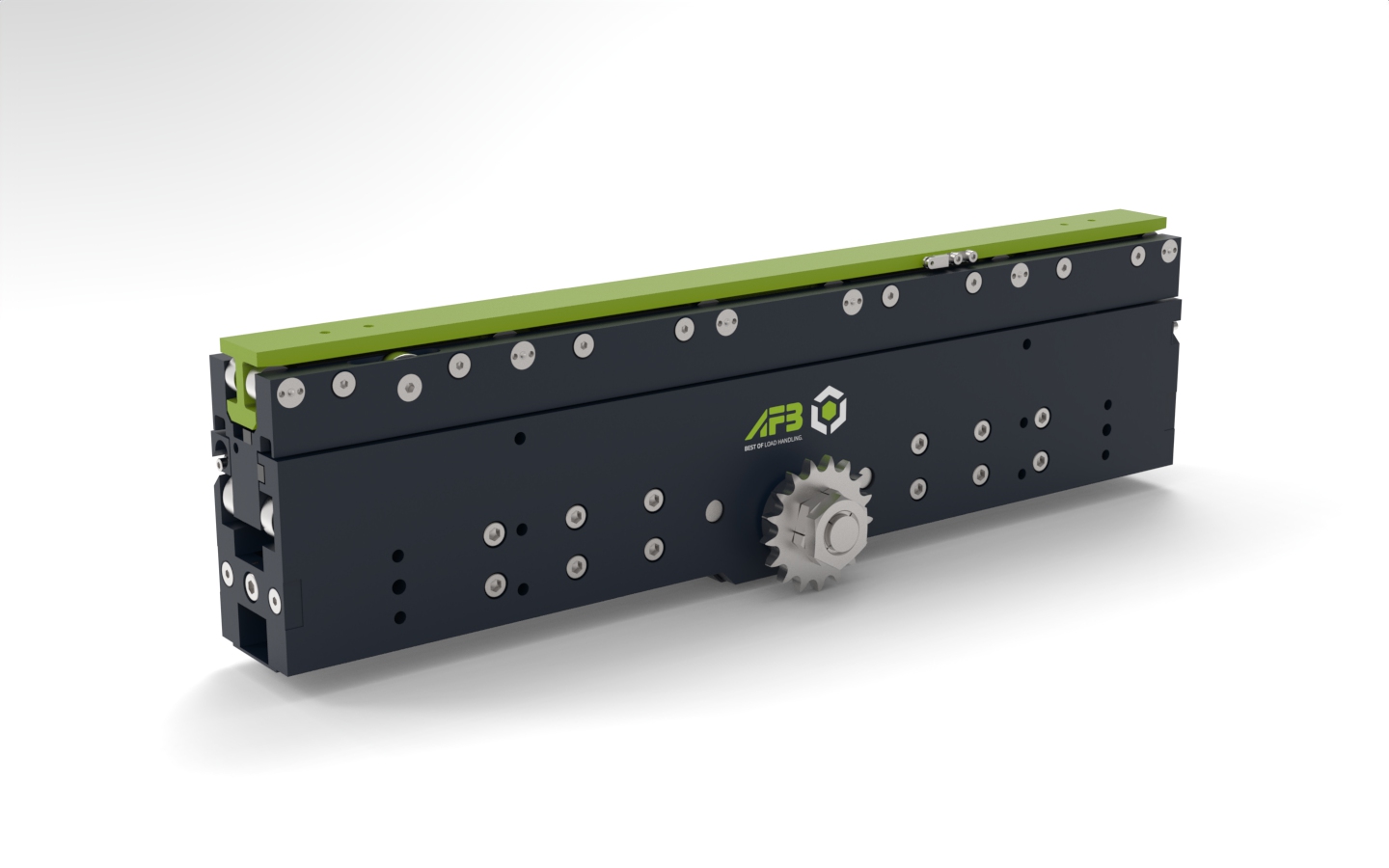

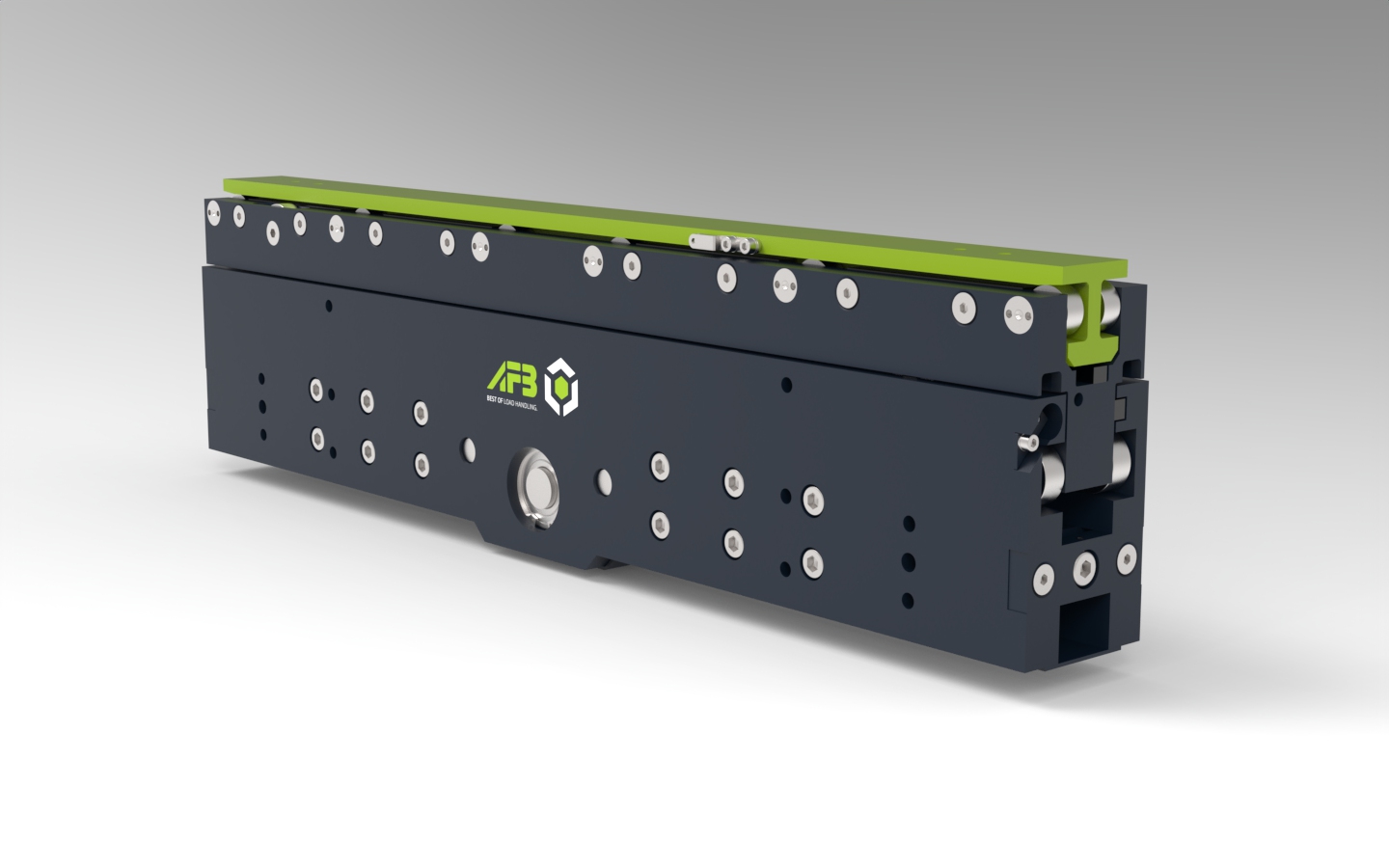

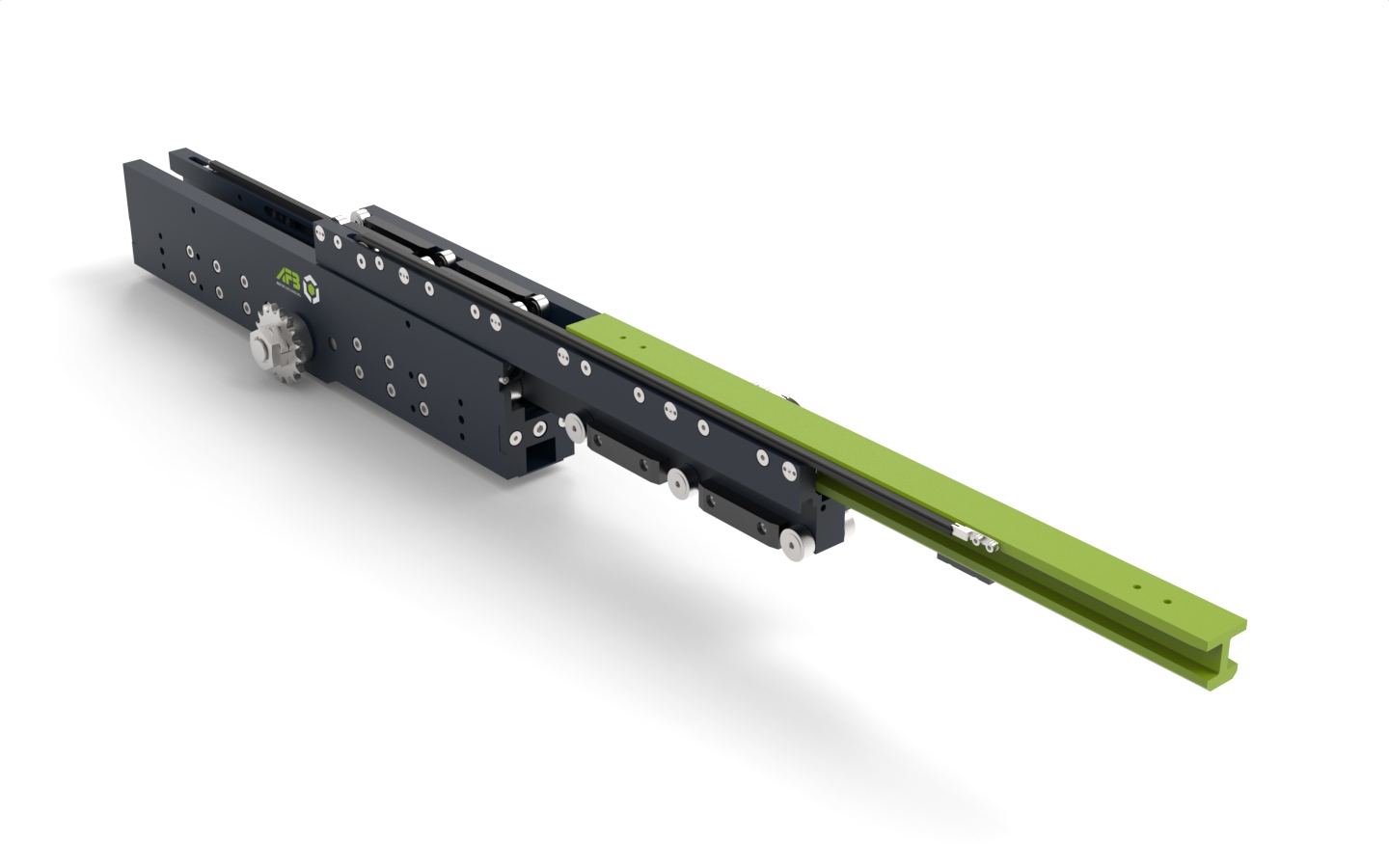

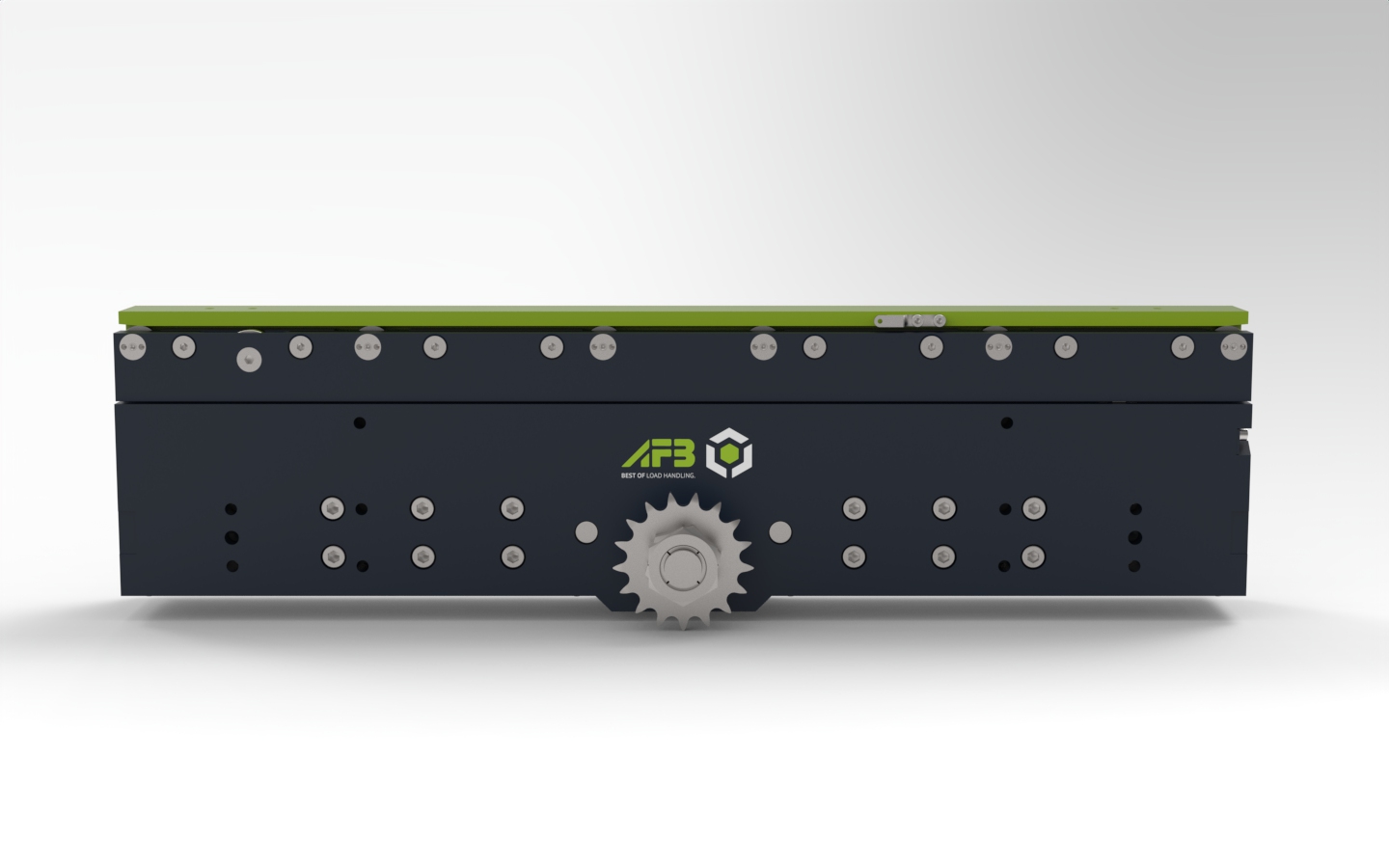

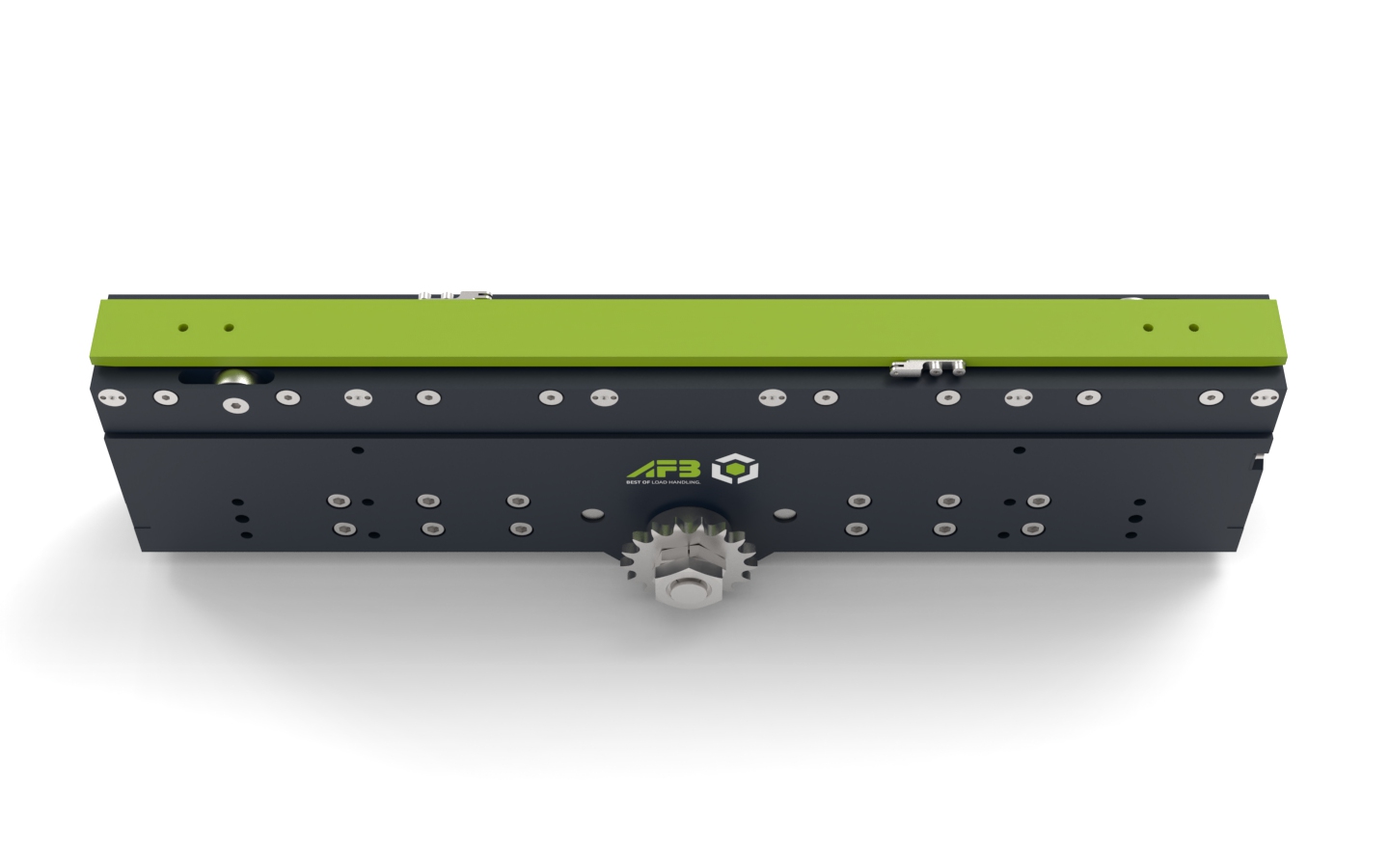

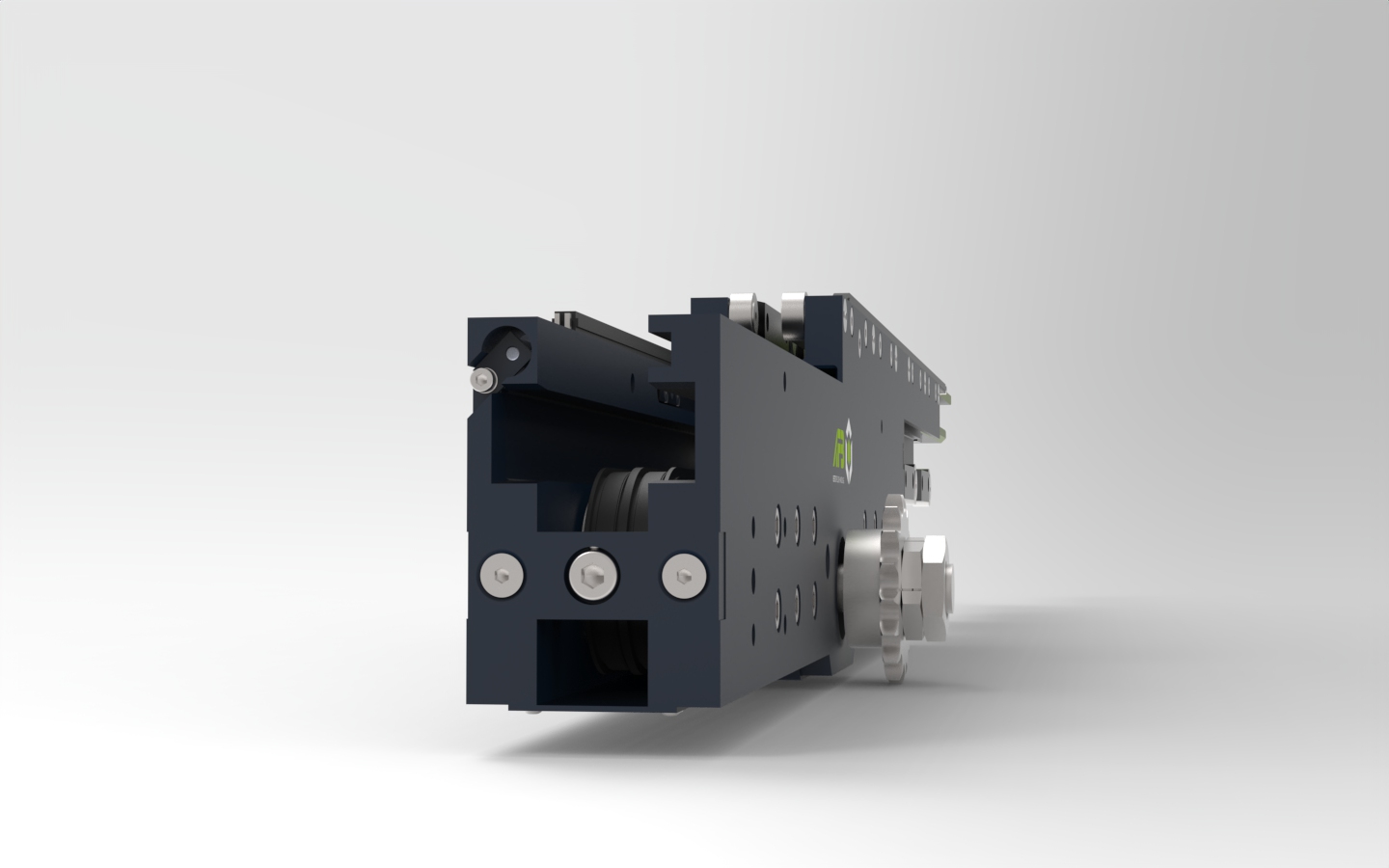

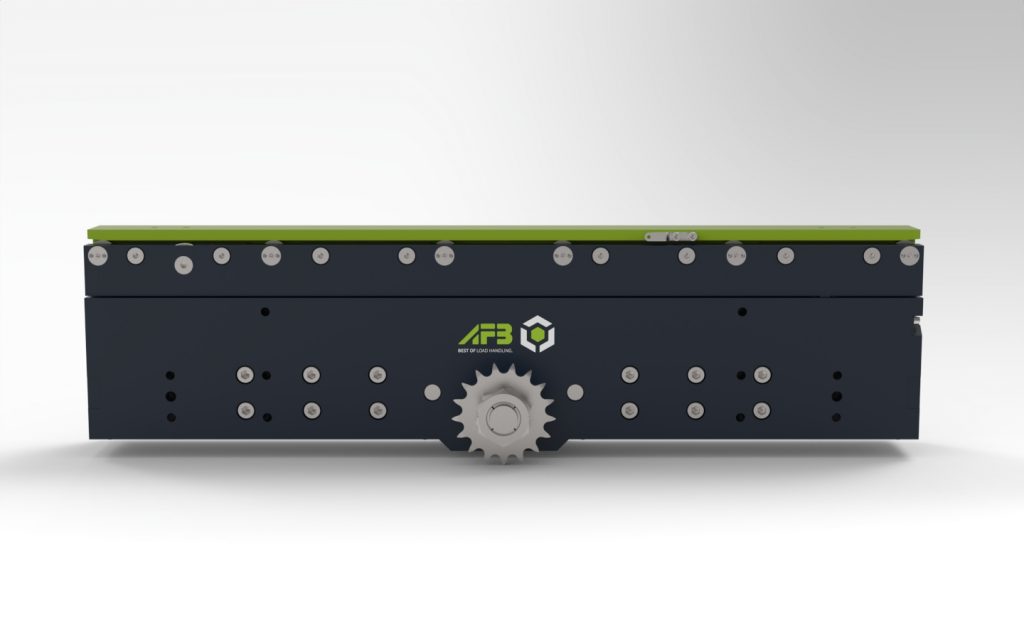

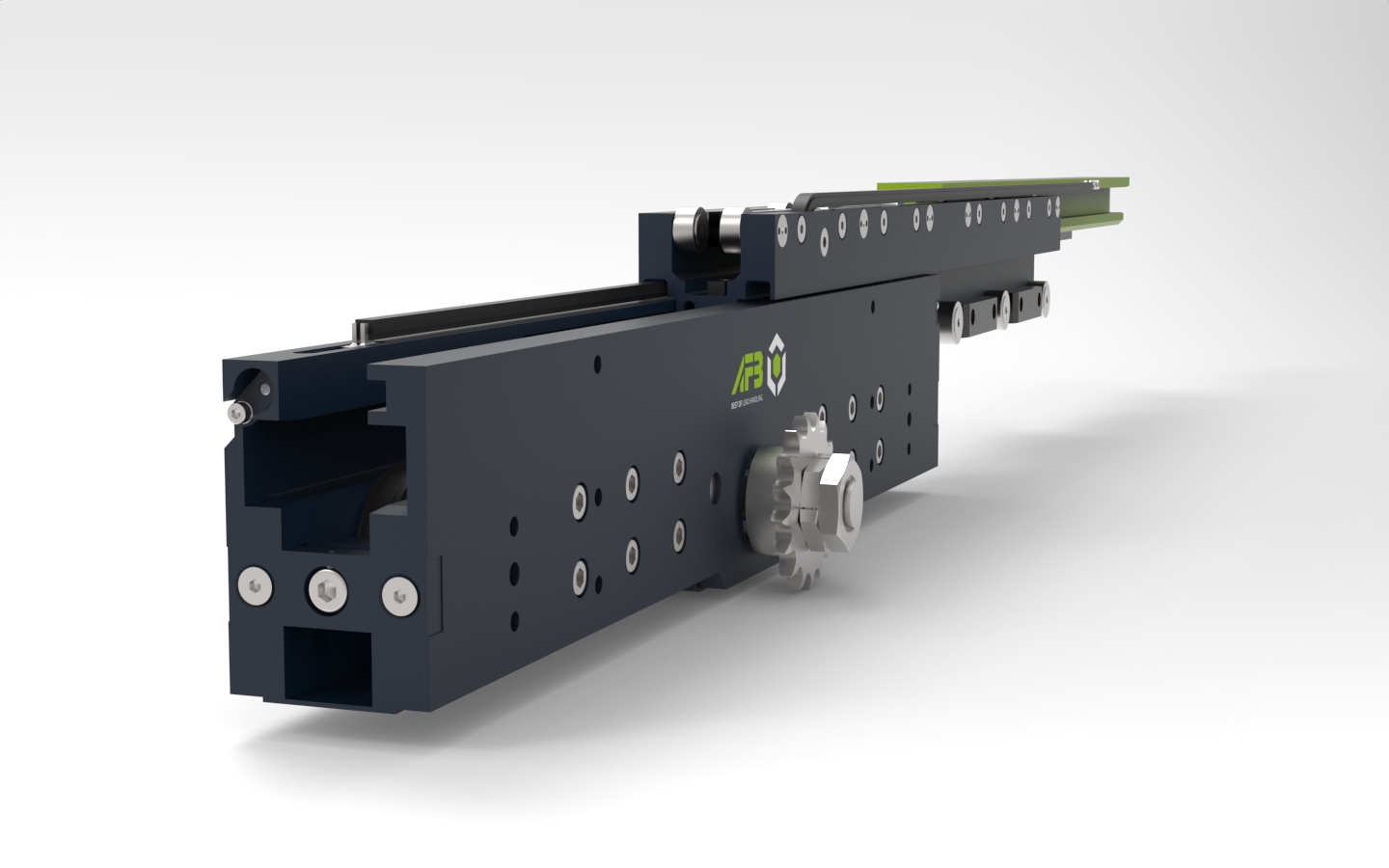

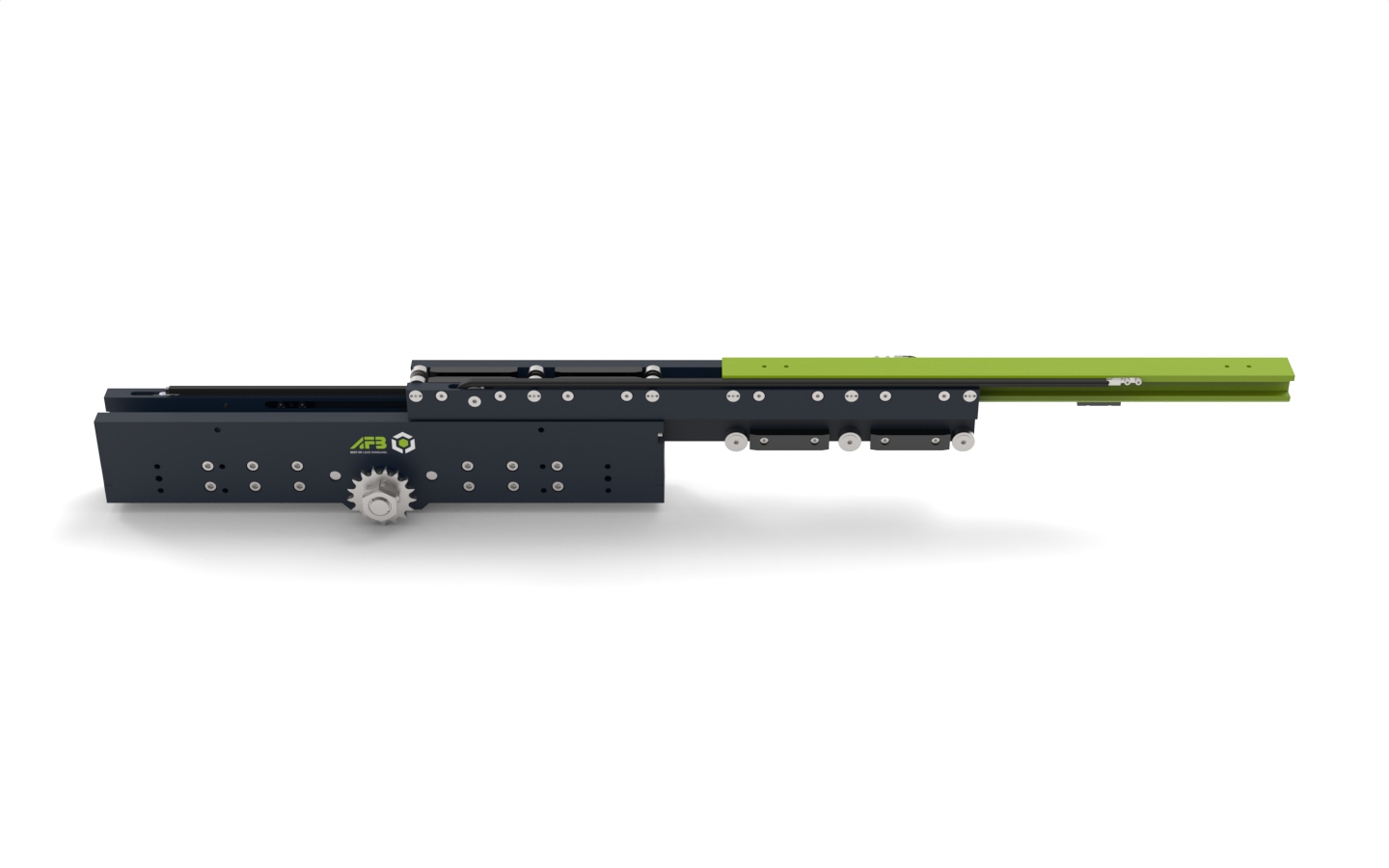

Space-saving solution with the 124-81-780 Telescopic fork unit

For a manufacturer of saws and storage technology in the field of long metal products and sheet metal storage, efficient use of space is a critical factor. Our 124-81-780 telescopic fork has been specially designed to meet the requirements of a long products warehouse and offers the perfect solution for space-saving storage with a high load capacity. With a basic length of 780 mm, a width of 89 mm and a height of 207 mm, this telescopic fork meets even the most demanding customer requirements.

Compact and durable

The special feature of the 124-81-780 telescopic fork is its slim design and high load capacity. The fork has a particularly narrow width of just 49 mm so that it can be used even in the tightest drive-in spaces. Although the compact design, it can carry a load of 600 kg per prong. This makes it ideal for applications where space is a limited resource.

Customized for continuous operation

Our telescopic fork was manufactured with AFB’s well-known quality and is designed for 24-hour operation, 7 days a week. This product not only guarantees space savings, but also reliability and durability in any industrial application.

Contact our sales team to find out more about the 124-81-780 telescopic fork and how it can optimize your application. We are pleased to assist you with any questions you may have and provide you with a customized quote.

Technical data:

• Payload: 600 kg

• Stroke: 830 + 30 mm

• Length of the top fork: 780 mm

• Length of the unit: 780 mm

• Speed (loaded / unloaded): 24 / 48 m/min

• Acceleration (loaded / unloaded): 0,5 / 1 m/s²

• Self weight of the complete unit: approx. 80 kg per prong
