The load handling device for every purpose.

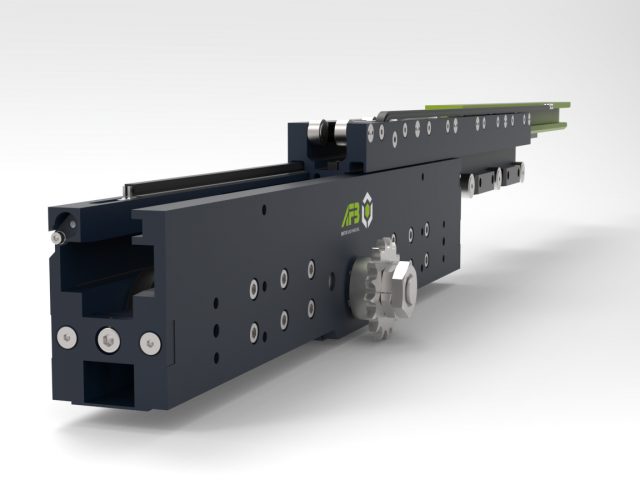

Do you need a lifting device for horizontal goods transport that is quickly available and cost-effective? Then choose the MEDILOAD Vario S. Our multiply deploy-able telescopic fork unit in proven AFB quality is designed as modular system, so it can be customized for any purpose in production and warehouse logistics. You are not getting just any lifting device, but the one that is just perfect for your transport tasks.
INDUSTRY APPLICATIONS
-
Distribution centers
-
Production automation
-
Parts logistic centers
-
E-commerce & omi-channel
-
General merchandise
-
3PL (Third Party Logistics)
INSTALLED ON
-
Stacker cranes
-
Shuttle systems
-
Transfer cars
-
Implemented stationary loading units
-
FTS-Systems
YOUR BENEFITS
-
Reduced construction costs
-
Easy configuration and endless possibilities
-
The model and position of the drive can be chosen according to the free mounting space
-
Wide selection of sensors
-
Rapid response to inquiries and competent consulting
-
Configuration support
-
Delivery within only 6 weeks
Short delivery time.
The modular system design ensures quick and easy configuration and reduced construction costs. This means, that you will receive the MEDILOAD Vario S, which is customised specifically for your purposes, within 6 weeks. We offer you maximum flexibility at a fair market price.
Fully customisable.
All mounting conditions and the environment are different. We offer you the perfect solution for your needs: the VARIO S is available in 3 different payload classes, 6 different lengths and more than 10 different drive positions.
Compatible with different load carriers.
The MEDILOAD Vario S can be installed on different devices such as stacker cranes and transfer cars for transporting of load carriers such as pallets, grid boxes or containers. This load handling device with a short delivery time is the perfect solution for distribution centres, as part of factory automation or in a freezer area.
EASILY EXPLAINED
360 DEGREE VIEW
TECHNICAL SPECIFICATIONS
| 1 | 2 | 3 | 4 | ||
|---|---|---|---|---|---|
| VARIO-S Type | F-60-166-HKS | ||||
| UT – Fork length (mm) | 1200 | 1250 | 1300 | ||
| OT – Top fork lengthP1 (mm) | 1200 | 1200/1250 | 1200/1250/1300 | ||
| HUB - Stroke D2-Mode (mm) | 1200-1400* (+30) | 1300-1500* (+30) | 1350-1550* (+30) | ||
| B1 - Width of extendingprofiles P1 - P2 (mm) | 166 | ||||
| H1 - Height ofextending profile P1 –P2 (mm) | 60,5 | ||||
| BH - Height of theconstruction from thetop forksurface until theunderside of the fixingplates (mm) | 126,5 | ||||
| Max. Payload (kg) | 1000 kg | ||||
| 1 | 2 | 3 | 4 | ||
|---|---|---|---|---|---|
| VARIO-S Type | F-65-174-HKS | ||||
| UT – Fork length (mm) | 1200 | 1250 | 1300 | ||
| OT – Top fork lengthP1 (mm) | 1200 | 1200/1250 | 1200/1250/1300 | ||
| HUB - Stroke D2-Mode (mm) | 1200-1400 (+30) | 1300-1500 (+30) | 1350-1550 (+30) | ||
| B1 - Width of extendingprofiles P1 - P2 (mm) | 174 | ||||
| H1 - Height ofextending profile P1 –P2 (mm) | 65 | ||||
| BH - Height of theconstruction from thetop forksurface until theunderside of the fixingplates (mm) | 128,5 | ||||
| Max. Payload (kg) | 1300 kg | 1500 | |||
