Compact and flexible: the MINILOAD telescopic fork units from AFB are the perfect lifting devices for automated warehouses dealing with loads of up to 150kg.
The MINILOAD telescopic forks are available in both single-deep and multi-deep configurations.
- Product data sheet download
PRODUCT FEATURES
-
Ideal for loads up to 150 kg per fork
-
Compact and solid aluminium construction
-
Entirely belt-driven or chain driven
-
Lightweight weight
-

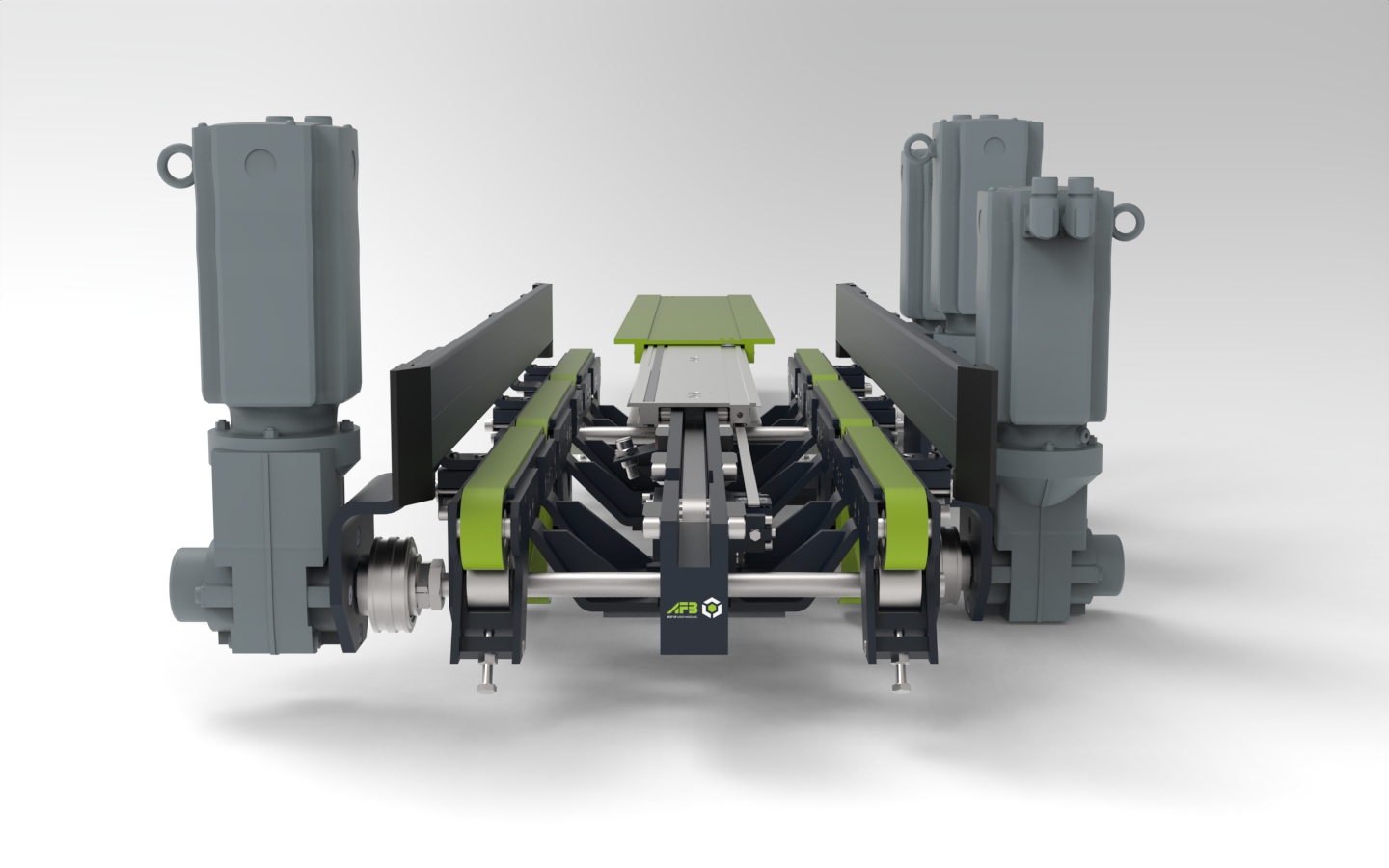

Optionally equipped with belt conveyors for collecting multiple loads
-
Minimal extension width at optimized heights
-
Flexible positioning possible
-
Matching accessories available (e. g. for sensor systems etc.)
-
Speeds up to 2m/s
-
Acceleration up to 5m/s2
CUSTOMER BENEFITS
-
Individually adjustable to different load units and application purposes
-
Solid design ensures extreme reliability
-
Guaranteed availability of spare parts for the product’s entire life cycle
-
Low maintenance costs
-
Modular and compact design (can be used in combination with other AFB products)
-
Energy efficient
-
Highly dirt resistant
Belt drive or chain drive?
-
The telescopic fork with a chain drive has a higher total height, because it needs a gearbox.
-
The telescopic fork with a chain is limited to a speed of max. 120 m/min.
-
The self weight is higher of a telescopic fork with chain drive.
-
The belt has no elongation instead of the chain.
When would you need to use a chain drive version instead of belt drive?
-
In cold storage applications
-
In aggressive environments
INDUSTRY APPLICATIONS
-
Distribution centers
-
Production automation
-
Parts logistic centers
-
E-commerce & omi-channel
-
General merchandise
-
3PL (Third Party Logistics)
INSTALLED ON
-
Stacker cranes
-
Shuttle systems
-
Transfer cars
-
Implemented stationary units
-
AGVs
TELESCOPIC MINILOAD Technical specifications
| 32 mm | 38 mm | 40 mm | 40 mm | 42 mm | 52 mm | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Type 1 | Type 2 | Type 3 | Type 4 | Type 5 | Type 6 multideep | ||||||
| H1-Height extending cross section | 32 mm | 38 mm | 40 mm | 40 mm | 42 mm | 52 mm | |||||
| B1-Width of extending profiles | min. 155 mm | min. 155 mm | min.155 mm | min.175 mm | min.175 mm | min. 225 mm | |||||
| UT-Fork lenght | 600 / 800 / 850 / 900 / up to 1800 mm | #colspan# | #colspan# | #colspan# | #colspan# | #colspan# | |||||
| BH-Overall height | 107 mm | 113 mm | 115 mm | 117 mm | 119 mm | 138 mm | |||||
| HUB-Stroke | > Under table length | #colspan# | #colspan# | #colspan# | #colspan# | >2x Under-table length | |||||
| Aisle width | 700 - 2.000 mm | #colspan# | #colspan# | #colspan# | #colspan# | #colspan# | |||||
| Payload | 100 kg - 250 kg on one prong | #colspan# | #colspan# | #colspan# | #colspan# | 100 kg on one prong | |||||
| Acceleration | max. 5 m/s | #colspan# | #colspan# | #colspan# | #colspan# | #colspan# | |||||
| Speed | max. 3 m/s | #colspan# | #colspan# | #colspan# | #colspan# | max. 5 m/s | |||||
CASE STUDIES
The Miniload telescopic with attachments can be integrated in: rotating units, lifting units with load centering, support brackets with integrated lifting unit, and much more.
